Frequency Range

50 - 60Hz

OUTPUT

Voltage (AC Mode)

13.8V ±2%

Voltage (Battery Mode)

Same as battery voltage

Rated Current

3A

Rated Power (Max.)

52.5W (with 800mA charge current)

Efficiency (Typ.)

>85%

Ripple & Noise

<120mVp-p

Output Channel

1 channel

CHARGING

Voltage

13.8V ±2%

Current

800mA (max.)

Constant voltage mode, charge current decreases when battery voltage increases.

PROTECTION

Input

2A / 250VAC fuse

Overload

3.6A ±5%

Hiccup mode, recovers automatically after fault condition is removed.

Over Voltage

16V ±5%

Hiccup mode, recovers automatically after fault condition is removed.

Battery Low Voltage

10V ±2%

PSU shuts down until AC power recovers.

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

Temperature

Working: -20 - 50℃

Storage: -30 - 80℃

Humidity

Working: 20 - 80%RH

Storage: 10 - 90%RH

LED INDICATOR

Red

On

AC power is on

Green

On

DC output is on

Yellow

On

Battery is fully charged

Flickering

Battery is charging

SAFETY & EMC

EMC Standards

EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013

LVD Standards

EN 62368-1-2014-A11-2017

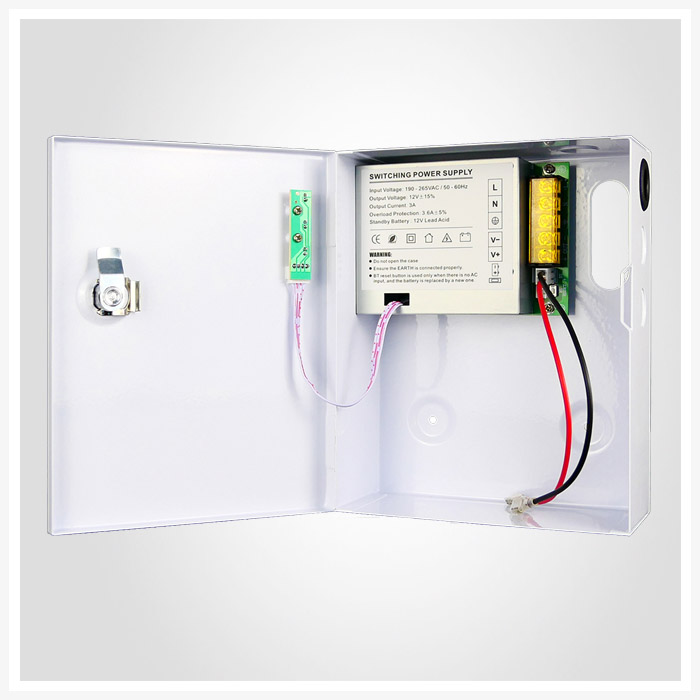

METAL BOX & PACKING

Default Metal Box

205 x 165 x 75mm, fits for 1 pc 12V 7Ah battery.

Optional Metal Box

265 x 195 x 75mm, fits for 1 pc 12V 7Ah battery.

295 x 195 x 90mm, fits for 1 pc 12V 17Ah battery.

Packing

41 x 35 x 23.5cm / CTN, 11.5kg / CTN, 10pcs / CTN (default metal box)
